Asymmetric Dimension Tolerance

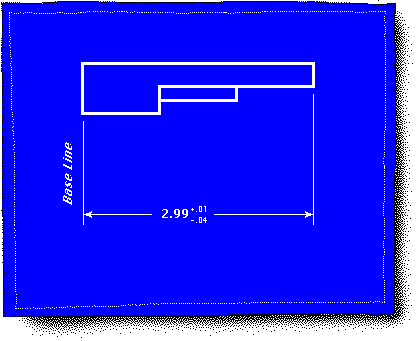

This technique supplies a target dimension but does not allow the same freedom as symmetric tolerancing does. In this instance, dimensions from 2.95 to 3.00 are OK; dimensions <2.95 or >3.00 are not.
