Mold Action – Ejector Pins & Sleeves

Ejector Pins & Sleeves

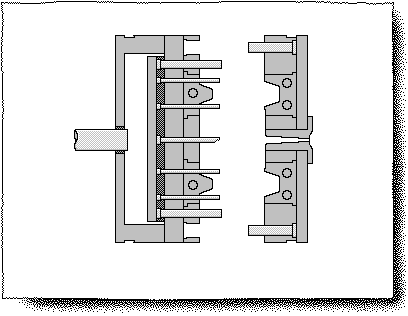

This animation shows a typical method to eject the cooled part from the mold. Round ejector pins are used to force the molded part out of the open mold. In this unit you will learn about ejector pin types, their application, and actuation.
