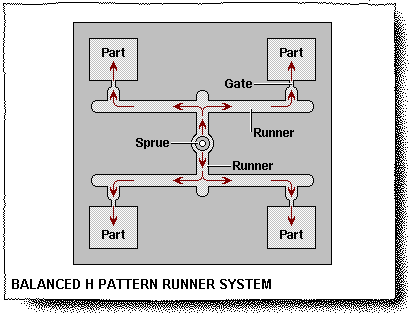

This drawing shows a balanced H pattern runner system used to mold four square color chips. The arrows show the plastic flow from the sprue through the runners, gates, and into the cavities. The advantages of the balanced H pattern will be covered later on in this unit.
