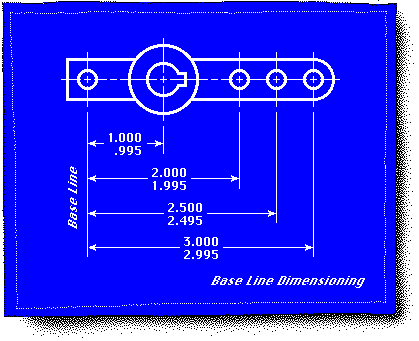

Base line or datum dimensioning uses a common feature as a reference or base for all features to be dimensioned from. This is advantageous because it avoids tolerance stack-up problems.
Page 7 of 32
Base Line Dimensioning Technique
