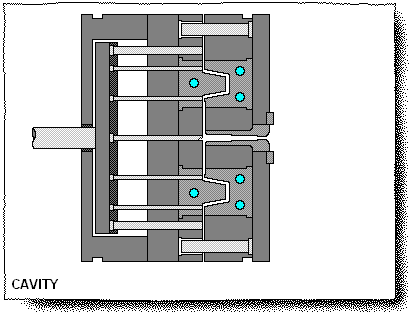

The cavity area is in the shape of the plastic part to be produced. The graphic here shows the complete flow of the plastic from the sprue bushing through the runner and gate systems and into the mold cavity to form the part.
Page 5 of 6
Plastic Injection Molding Cavity Definition
