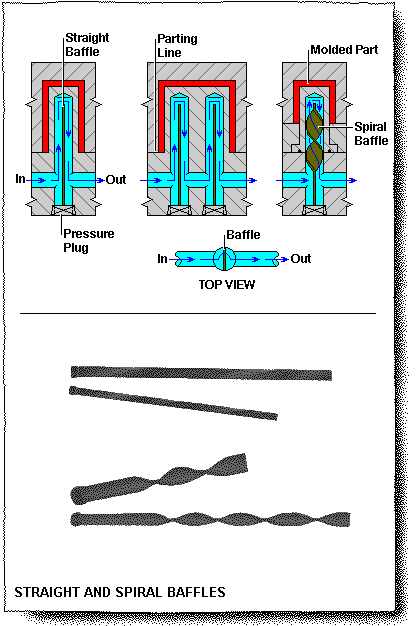

The function of the baffles shown here is to split the coolant channel into two semi-circular channels. As the coolant enters, the baffle diverts the flow up and over the baffle, then down and out. Spiral baffles produce a turbulent flow in the channel providing balance and efficient cooling.
