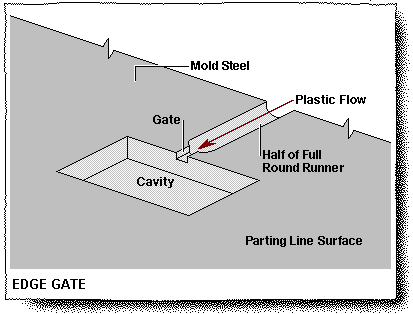

The edge gate shown here is the most common style of gate. The arrow shows the plastic flow from the runner, through the gate, and into the cavity. Half on the round runner and all of the gate is machined into the cavity side shown here.
