Description:

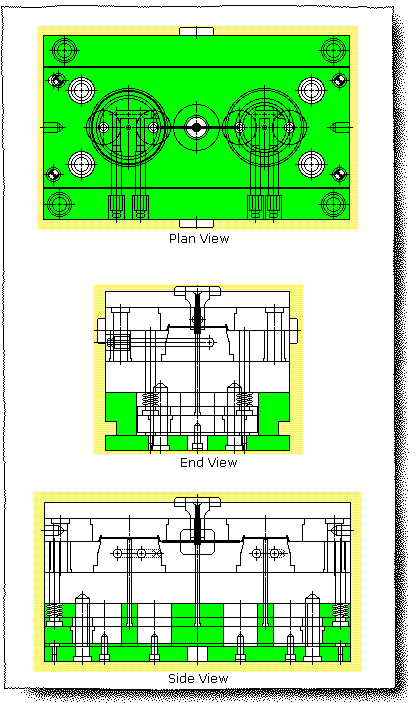

The ejector housing is a one piece unit (or assembly comprised of the rear clamping plate, two rails and 6 assembly bolts), which forms the “space” that the ejector plates exist in. The housing (rail height) defines the maximum ejection stroke.
Location:
Bottom (“B” half) of the mold.
