Description:

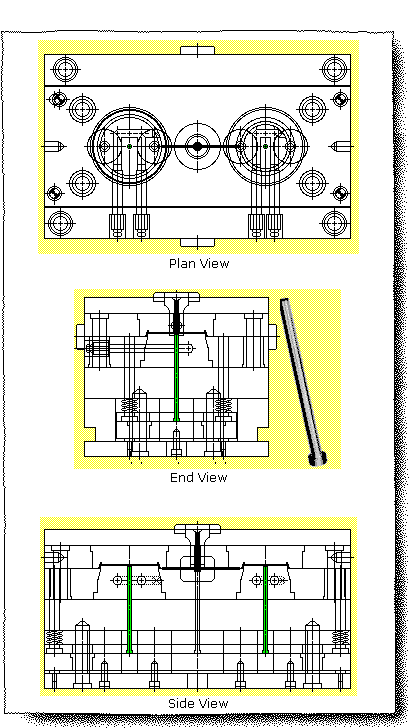

Ejector pins, or knock-out pins, are used to eject the part from the mold. On blueprints, ejector pins are normally identified as a circle that has a cross inside it with two diagonal quadrants “blackened in.”
Location:
Ejector pins are located on the ejector retainer plate and extend through the support plate and the “B” plate.
