Full Round Runner Machining

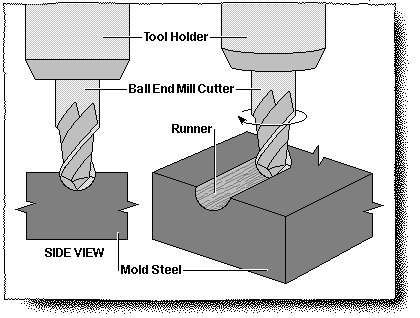

This drawing represents the method used to machine one half of the round runner into the mold steel The hard ball end mill cutter and its holder are rotated in the spindle of a milling machine. The cutter marks left on the runner surface must be removed by polishing with rotary abrasives.
