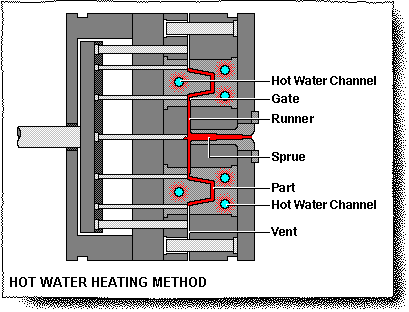

This drawing represents the cross-sectional view of a mold base with the molded part and its runner system. Water channels have been drilled through the mold cavity and core steels. This enables hot water to be circulated through the mold from a heating unit along side the molding machine. The hot water is heated by electrical resistance heaters and is temperature controlled.
