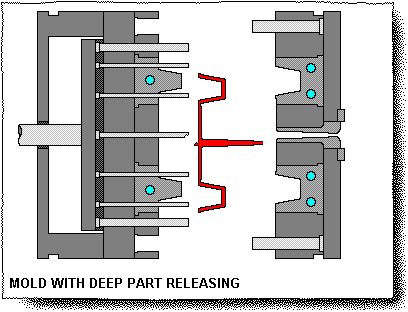

Release is the ability of the mold to eject a part. To accomplish this all cutter marks must be removed from the molding surface of the cavities and cores. Further, the finish (final scratches) should be vertical, from the bottom of the cavity or core to the parting line, to aid in the ease of ejection. This is called draw stone. This will also speed up the molding cycle.
