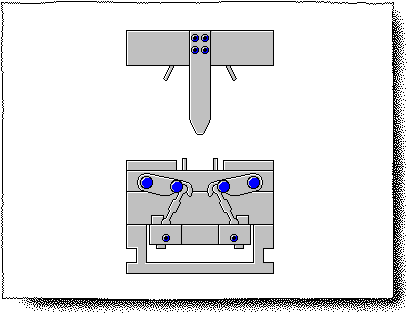

This animation shows a Toggle-Lock System for early ejector assembly return. The ejector pins must be returned before the cam pins contact and move the slide blocks in, or mold damage will occur. This unit will also cover an internal early return system.
