Leader Bushings

Leader Bushings

Aka Guide Bushings

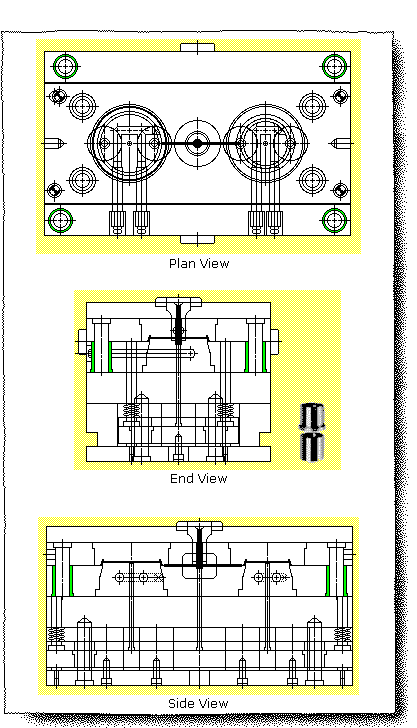

The leader pin bushings are designed into a mold to allow for replacement after wear. The leader pin bushing is typically the highest wear location on the mold. As the bushings become worn they are replaced, which extends the life of the mold.


Typically located in the four corners of the mold and on the parting line. Note: the offset bushing is the bushing the offset leader pin goes through.
