Description:
The locating rings function is to “center” the mold on the molding machine. This assures that the mold will always be placed in the machine in the same orientation every time it is used.
Location:

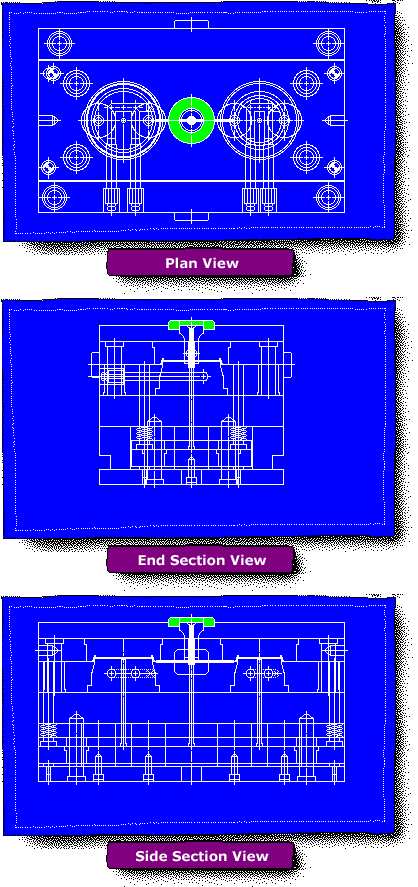

The locating ring is on the top (“A”) side of the mold, typically in the center of the top clamping plate.
