Mold Cooling

Mold Cooling

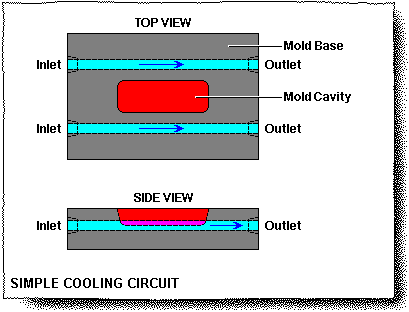

This illustration represents a cooling circuit for a narrow, shallow, single cavity mold. Parallel coolant channels are drilled through the mold steel, and tapered pipe thread is tapped on each end for quick disconnect water line fittings. Heat is removed as the coolant travels through the channel.
