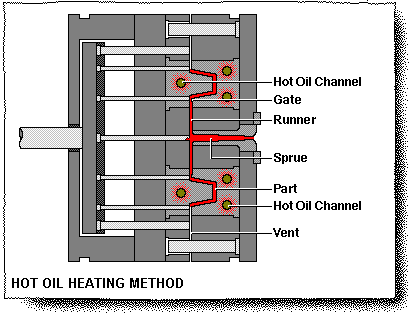

The drawing represents the cross-sectional view of a mold base with the molded part and its runner system. Hot oil channels have been drilled through the mold cavity and core steels. This enables hot oil to be circulated through the mold from an external source. The oil is typically heated by electrical resistance heaters and is temperature controlled.
