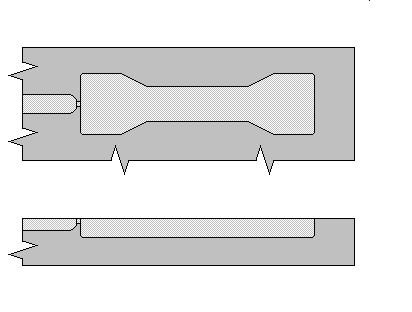

This picture represents plastic resin filling a cavity without any vents. The air and any gases caused from heating the plastic resin are trapped and cannot be displaced. This compresses and raises the temperature of the gases, causing the plastic to burn or char, while possibly causing a short fill shot.
