Parts of The Bill Of Materials

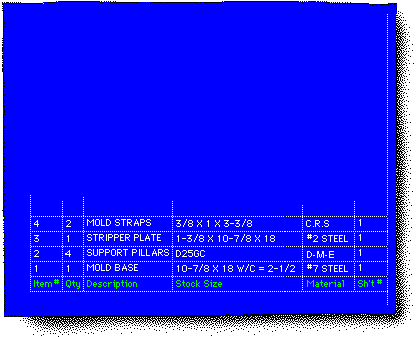

Parts of the Bill of Materials:

  • ITEM: Item number in bill of materials.
  • QTY: Required quantity of item for set of prints.
  • STOCK SIZE: Rough size of component. Sometimes used for catalog number.
  • MATERIAL: Designates supplier or material classification. May find other abbreviations in this column, e.g., STK for stock item and STD for a standard item that can be ordered from any supplier.
  • SHT#: Sheet number where component can be found on a set of sheets.
