Scale Units For Brinell Hardness Scale

Scale Units for Brinell Hardness Scale

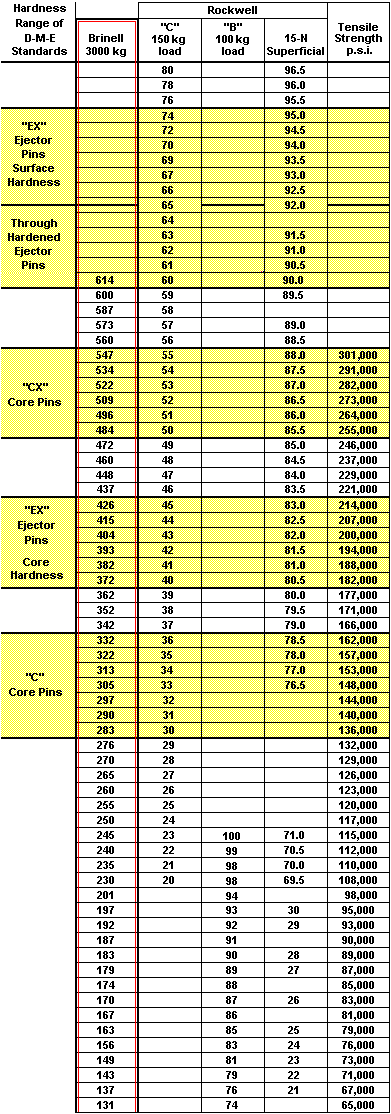

The Brinell hardness scale is used to compare soft as well as hardened metals. A 10mm hardened steel ball is forced into a test specimen using a 3000 kg load. The load is maintained for a short period of time and the specimen is removed from the machine. An eyepiece instrument with a graduated scale in millimeters is used to measure the width of the indentation. The chart shown compares Brinell hardness to Rockwell B and C scales.
