Section of A Print: Notes 2


Notes are special instructions for the users of the print. They may be found on any sheet within a set of sheets.

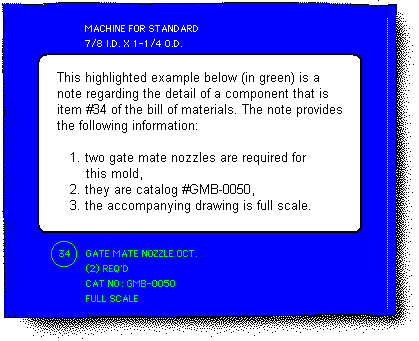

Here is an example of notes taken from a print showing a mold base. The notes provide general information about a manifold located on the mold base.



Page 11 of 21
