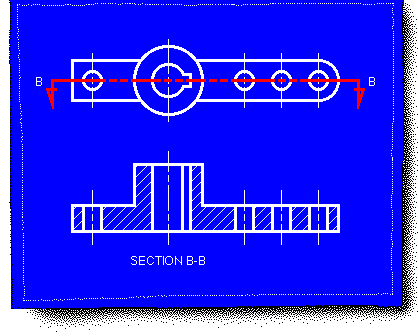

Often while looking at a mold print, print readers get lost at section views. These views are often misread or mis-designed. The most common mistake is for the view to be drawn opposite from the section cut or from its back side. Frequently, views are hastily drawn, but not referenced, and not properly completing the drawing.
It is important to understand cut sections and what they are detailing. If it was not important, it would not be sectioned.
