Through Hardened Ejector Pins – Specifications

Hardened Ejector Pins - Specifications

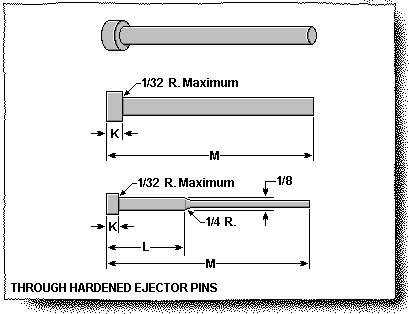

Through hardened refers to the entire pin being hardened throughout the pin body. The body surface is a very hard 60-65 Rc. The heads are hot forged for uniform grain flow and high tensile strength. After hardening, the heads are annealed to 30-35 Rc for toughness. Note the size and tolerance specifications and the shoulder style (L) for small diameter, short lengths.



Page 3 of 12
