Water Manifolds

Cooling Components Water Manifolds

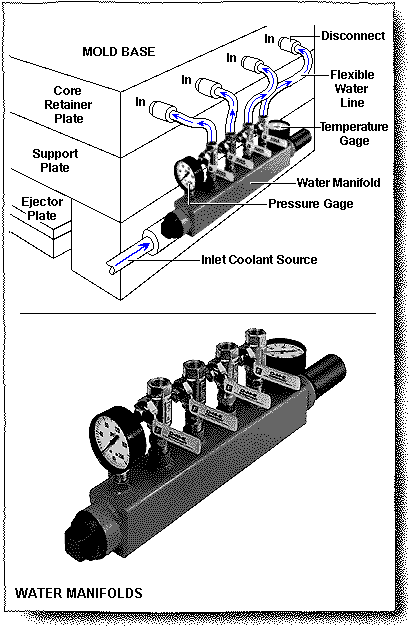

The illustration here represents a water manifold being used to control coolant flow, temperature, and pressure into the core retainer plate. The connections for the coolant discharge can be on the opposite or the same side of a mold base. Water manifolds can also be connected to the cavity retainer plate.



Page 21 of 24
