Coolant Channel Patterns – Cooling Circuit for Cavity Insert

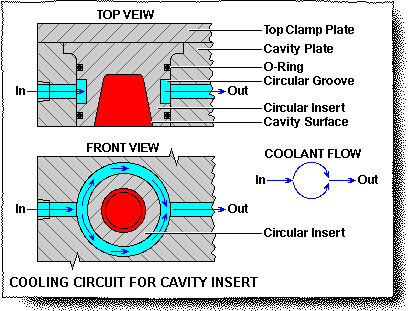

These illustrations show coolant entering, splitting around the circular cavity insert, and then out. This circuit can be linked to other inserts. Two O-ring grooves are turned to prevent leaking. A center groove is turned to provide 360 degrees F of cooling around the circular insert and cavity surface.



Page 12 of 24
