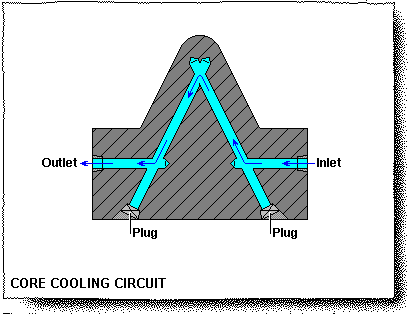

The illustration here represents a cross-sectional view of a core cooling circuit. Holes are drilled and plugged as shown. The patterns may be radial or travel with the core length depending upon the design.
Page 11 of 24
Coolant Channel Patterns – Core Cooling Circuit
