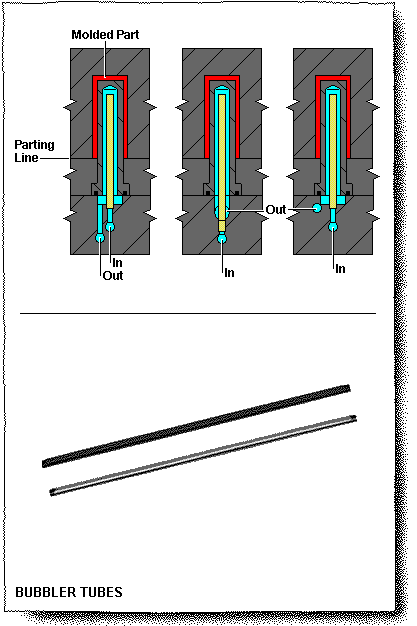

Bubbler tubes are used to cool small inserted cores, or spot cooling in hard to reach areas. Inlet and outlet holes are drilled in the support plate. The inlet hole is tapped to receive a threaded bubbler tube. Coolant travels in, up the bubbler tube, over and cools on the way down, then out the hole provided.
