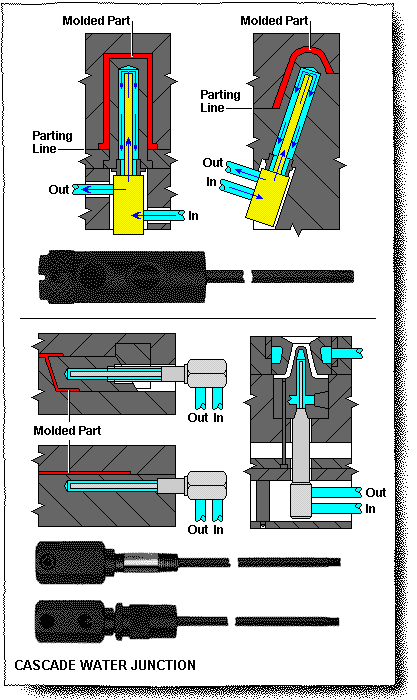

Cascade Water Junction


Cascade water junctions are used to cool inserted cores or spot cooling in hard to reach areas of molds. Coolant enters the bottom connection and travels up the center pipe, spills over like a fountain, cooling 360 degrees F as it flows down and out the proper connector.
