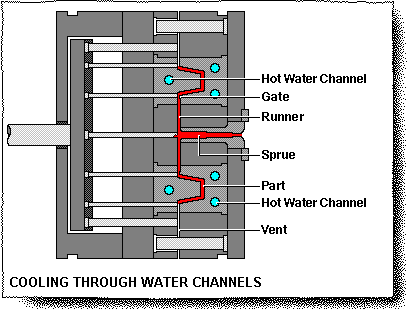

This drawing represents the cross-sectional view of a mold base with the molded part and its runner system. Water channels have been drilled through the mold cavity and core steels. This enables circulating water to remove heat from the molded part by convection. The water temperature, flow, and pressure can be regulated.
