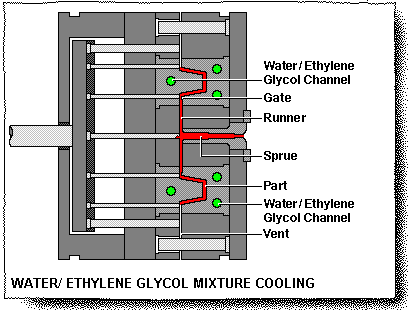

This drawing represents the cross-sectional view of a mold base with the molded part and its runner system. Water channels have been drilled through the mold cavity and core steels. This enables a circulating water/ethylene glycol mixture to remove heat from the molded part by convection. This mixture is used for extreme cooling requirements and requires a chilling unit.
