Description:

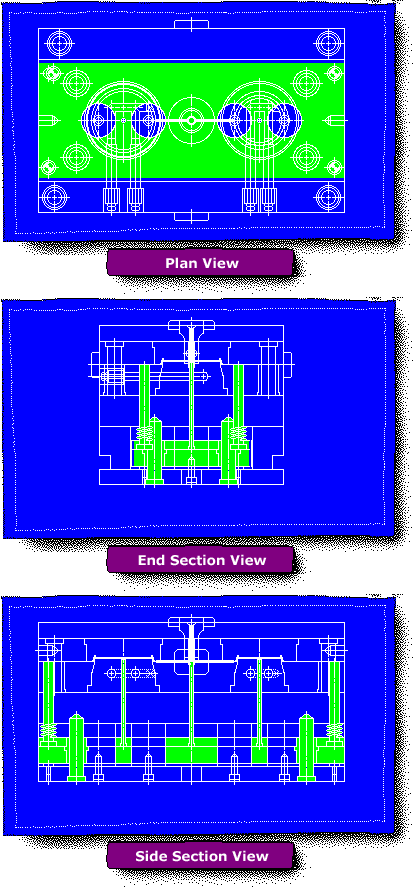

Often called the ejector box, the ejection mechanism is the bottom of the tool and houses all the appropriate ejection devices.
Location:
The ejector mechanism is located on the bottom (“B” side) of the mold. It includes the ejector bar, ejector retaining plate, ejector return pins, ejector pins, stop pins, and springs if desired.
