Ejector Plates

Ejector Plates

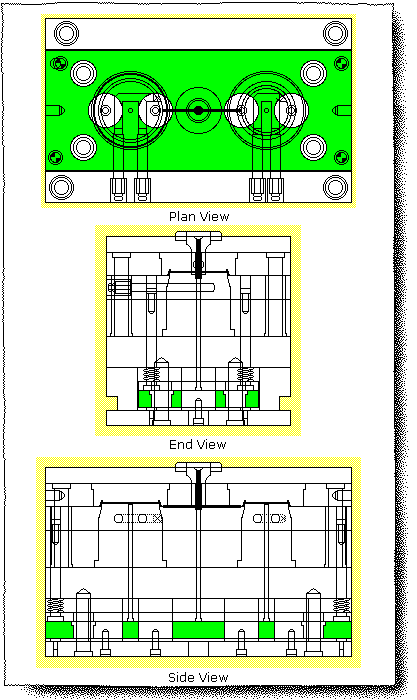

Ejector Plate and Knock Out Bar

The ejector plate is the floating plate in the ejector system. Its thickness is defined by the amount of force required to eject the part as well as the part/mold size. This plate also locks the ejector mechanism (pins or plate) in the ejector retainer plate.
