LACK OF IDENTIFIED CRITICAL DIMENSIONS

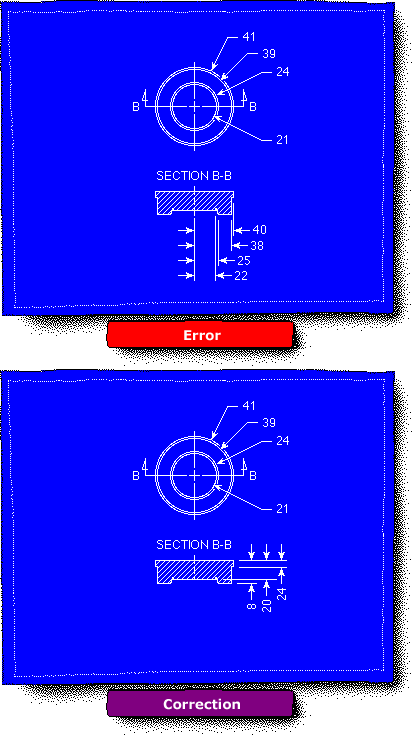

When designing or reading a print, it is important to determine and communicate the most important (critical) dimensions. AII critical dimensions should be identified and communicated clearly.
It is very important for everyone to realize that mold builders have construction tolerances. If the most important dimensions are not identified, then a product that is “to the print” can be manufactured but not be useful in application. This relates to dimensioning the print correctly.
