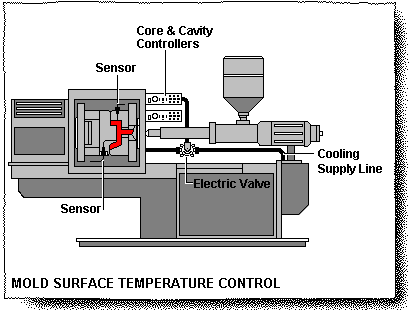

The illustration here represents the installation of a mold surface temperature control system on a molding machine. The purpose of the microprocessor control and its mold sensors is to regulate the mold surface temperature by regulating the flow of water from the auxiliary temperature control unit. The heating and cooling cycle (time) is controlled automatically.
