Parting Line Vents

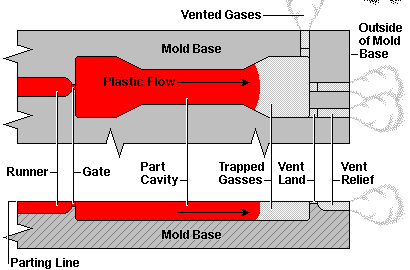

Parting Line Vent

The parting line vent shown here represents the most common type of venting used. Many more can be used where required. The vent is usually made by grinding a shallow, narrow land, followed by a deeper relief groove. Part size, shape, and type of plastic determine the vent land size. The vent relief groove helps to keep the land open.
