Vent Placement Problems

Vent Placement Problems

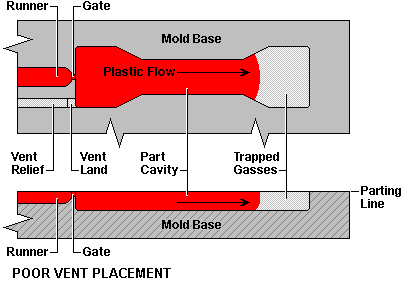

The drawing here represents a poor location for a vent since the trapped gases are located at the opposite end of the cavity. Opposite the gate, and the last place to fill, is the best location for a vent.
